Single-pass cannabinoid refining on a high-plate spinning band column, under automatic control with recorded run data.
Crude extract is a mixture of cannabinoids, terpenes, waxes, and residual solvent whose boiling points sit close together under vacuum. Separating them cleanly takes theoretical plates, not just heat. The 9200 runs a rotating Teflon band inside the column, which keeps a thin, continuously renewed film against the wall and delivers a high plate count in a short column with very low hold-up.
The practical result is fewer passes. Where multi-pass setups recycle heads and tails to chase potency, a single controlled run typically lands 90–95% total active cannabinoids — less thermal history on the product and less rework on the floor.

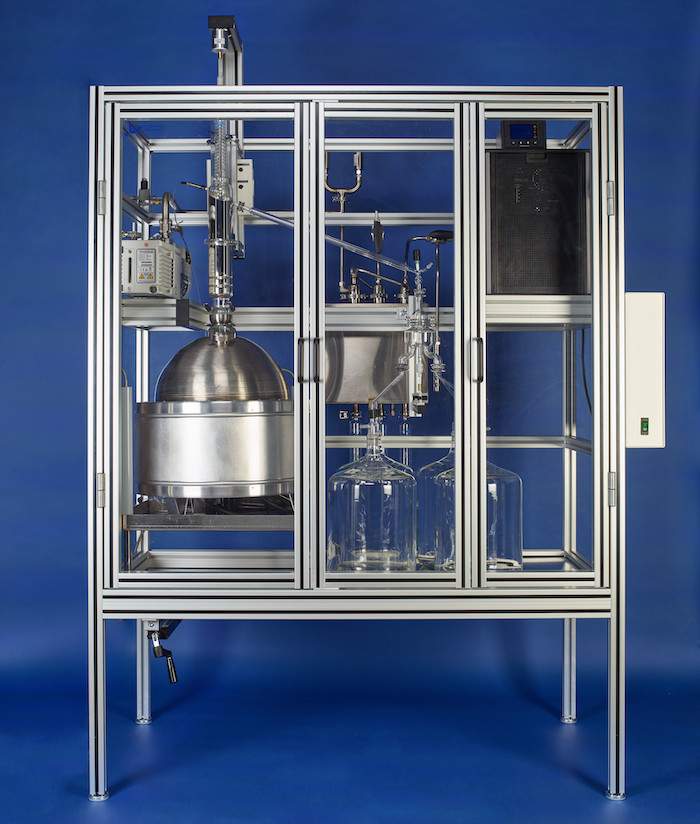

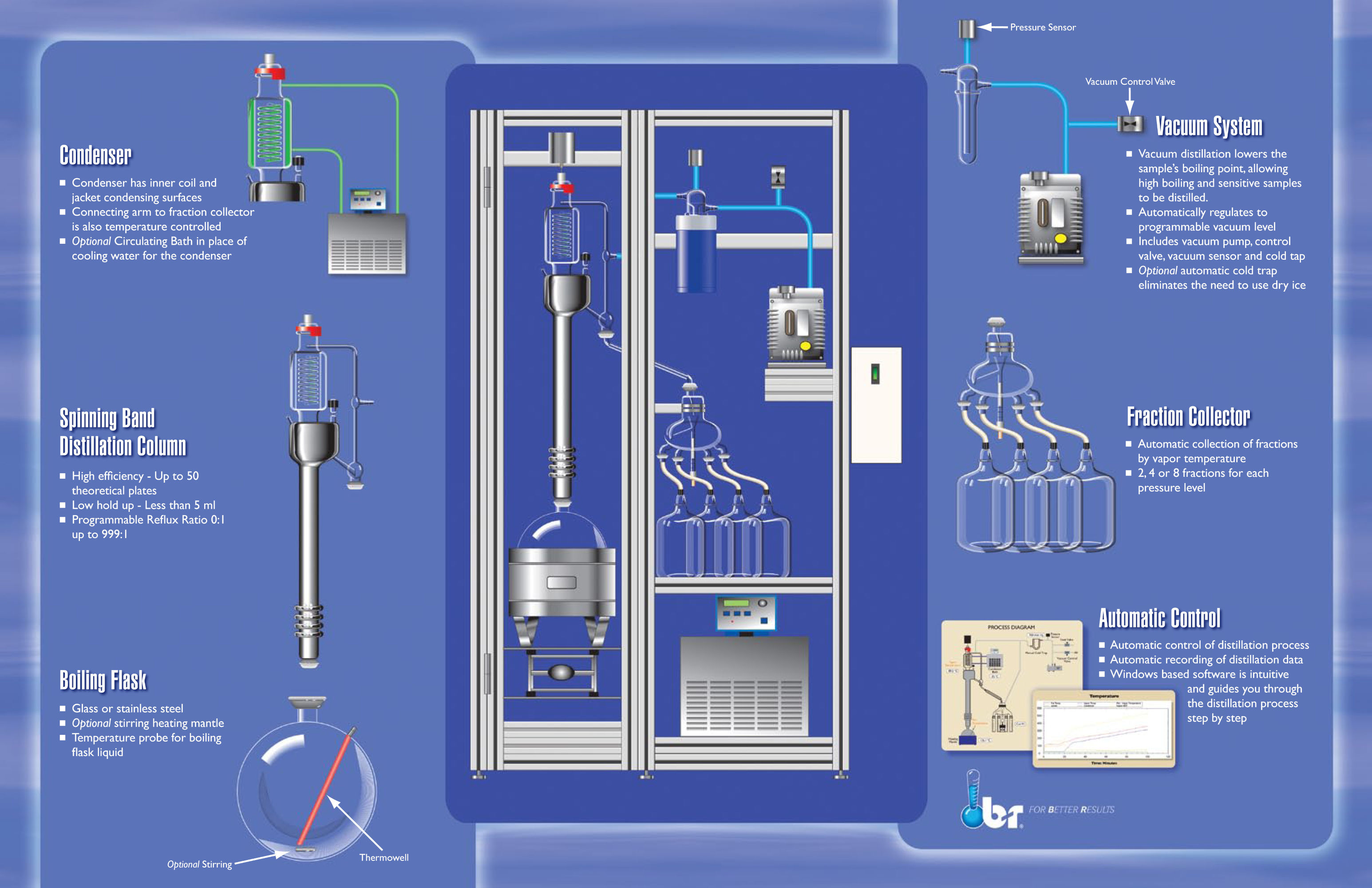

Every 9200 is a complete distillation train — boiler through fraction collector — with vacuum, cooling, and control hardware matched to the column.
Boiler size sets the batch and the rate. Most processors start at the scale that matches one day of upstream extract.
| Configuration | Boiler sizes | Throughput | Typical use |
|---|---|---|---|
| Small scale | 5, 12 L | 0.5–1.5 L/hr | R&D, method development, small commercial batches |
| Mid scale | 12, 22 L | 1–2 L/hr | Steady daily production on a single shift |
| Production scale | 22, 50 L | 2–3.5 L/hr | High-volume refining where uptime drives the schedule |
| Control | Automatic control with PC software |
|---|---|
| Band | Teflon band |
| Boiler sizes | 1–50 L |
| Columns | 21 mm and 32 mm |
| Column length | 30 cm |
| Vacuum range | 100–0.01 Torr |
|---|---|
| Cold trap | 3-stage stainless steel |

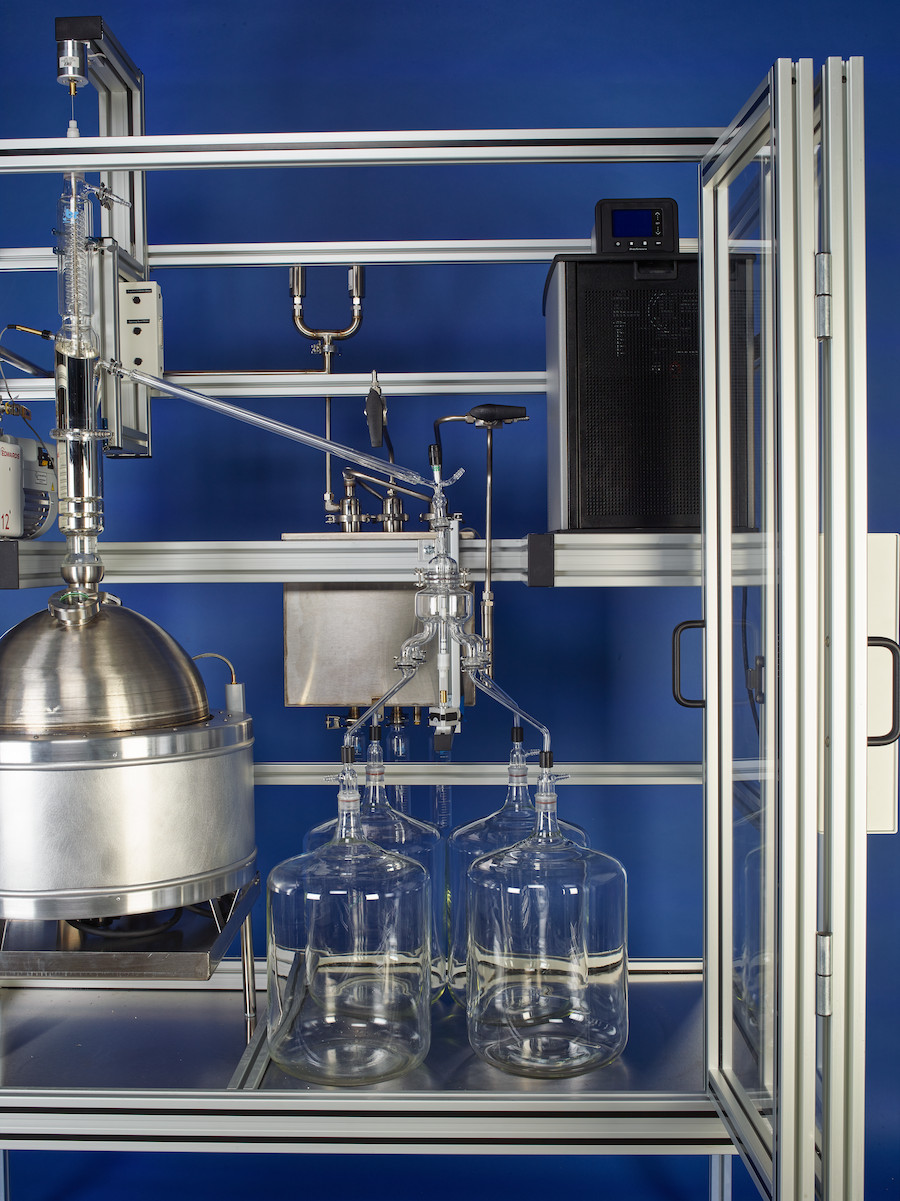

| Fraction collector | Automatic, by vapour temperature |
| Typical purity | 90–95% total active cannabinoids |
| Documentation | IQ, OQ, PQ, FAT, SAT |
Talk with a B/R applications specialist about spinning band systems and process fit for your crude.
